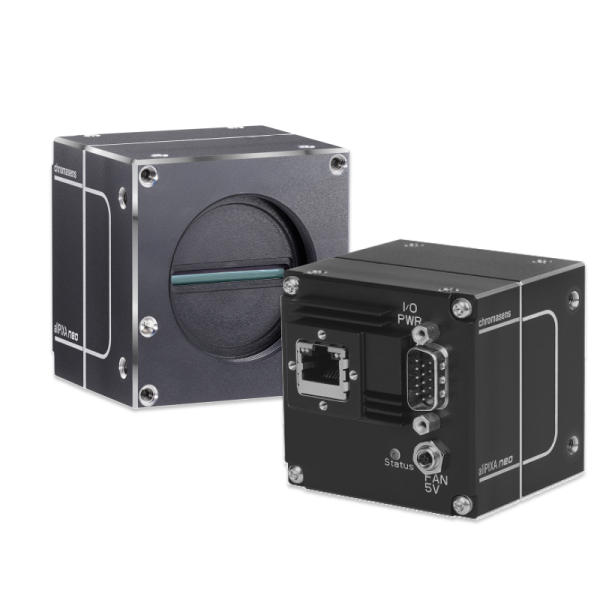

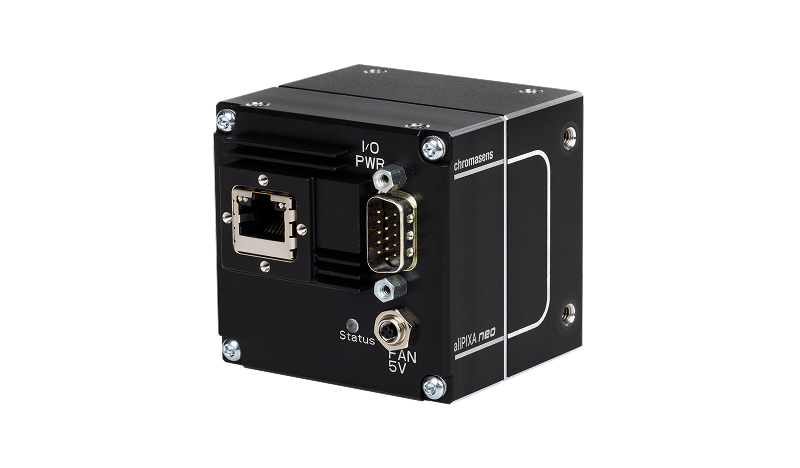

The allPIXA neo CMOS line scan camera series offers an outstanding performance in mono, RGB, and NIR with 4k / 6k resolution. The 10 GigE interface enables easy, cost-efficient integration. Its compact design makes it ideal for high-speed web inspection applications, even at production speeds where other systems produce blurry results.
Fast, Versatile, Economical
Benefit From A Compact Design With High-Performance Multispectral Sensors
- 4k and 6k line scan camera with 7 µm and 5 µm pixel size
- Standard 10 GigE interface (RJ45) for long cable length
- CMOS multi-line sensor with in mono, RGB + mono and RGB + NIR
-
High speed up to 90 kHz in color and 250 kHz in mono
Built For Your Vision
allPIXA neo 10GigE Is The Perfect Camera For You If:
- You're looking for a high-performance camera delivering excellent image quality in mono, RGB and NIR.
- You need ultra-fast and reliable data transfer that keeps your high-speed inspection processes running smoothly.
- You want a compact camera that integrates easily into limited installation spaces and existing systems.
- You value seamless setup and operation supported by intuitive tools and efficient workflow integration.
// Benefits At A Glance
- Cost efficiency and maximum throughput: Reduce your total operating costs with modern 10 GigE interface that is future-proof and compatible with your existing systems.
- Easy integration, ready for use: Minimise the effort of installation and downtimes thanks to the extremely compact design
- Uncompromising image quality at maximum processing speeds: Capture even the smallest details in mono, RGB and NIR - even at the highest production speeds, where other systems only deliver blurry results.
// Features
- Resolution: 4k and 6k pixels
- Sensor: Multi-line CMOS sensor
- Chroma: Monochrome, color and NIR
- Line rates: up to 250 kHz
- Trigger: Frame and line trigger options including variable encoder input
- Image processing: Color correction matrix for optimized color image representation
- Multi-camera synchronization: Perfect line and frame-trigger synchronization of multiple cameras
- Multi-Flash function: Capturing multiple images in one pass with various lighting conditions
// The Right Accessories For Every Application
// Perfectly Connected – Thanks To Powerful Software
For easy integration, the camera offers a GenICam compatible graphical tool (GCT) and user-friendly SDK. This enables fast implementation of camera control and high-speed image acquisition under Windows or Linux.
